36V, 1A Monolithic Step-Down Switching Regulator
1 Features - 1A continuous output current capability
- 4.5V to 36V wide operating input range with 33V input Over Voltage Protection
- Integrated 36V, 250mΩ high side and 36V, 140mΩ low side power MOSFET switches
- Up to 97% efficiency
- Internal compensation to save external components
- Input Under-Voltage Lockout
- Input over-voltage protection to protect device fromworking in high voltage and high current condition
- Output Over-Voltage Protection
- Output short protection with both high side current limit and low side current limit to protect the device in hard short
- Soft start time is programmable using external capacitor Over-Temperature Protection
- Pulse skip mode at light load to improve light load efficiency
- Stable with Low ESR Ceramic Output Capacitors
- Fixed 150KHz Switching Frequency
- Fewest external components and intensive internalprotection features
- SOP-8 Package
| 2 Applications - Distributed Power Systems
- Portable charging device
- General purpose DC-DC conversion
3 Description PL8316 is a monolithic 36V, 1A step-down switching regulator. PL8316 integrates a 36V 250mΩ high side and a 36V, 140mΩ low side MOSFETs to provide 1A continuous load current over a 4.5V to 36V wide operating input voltage with 33V input over voltage protection. Peak current mode control provides fast transient responses and cycle-by-cycle current limiting.PL8316 has configurable line drop compensation,configurable charging current limit. CC/CV mode control provides a smooth transition betweenconstant current charging and constant voltage harging stages. Built-in soft-start prevents inrush current at power-up. |

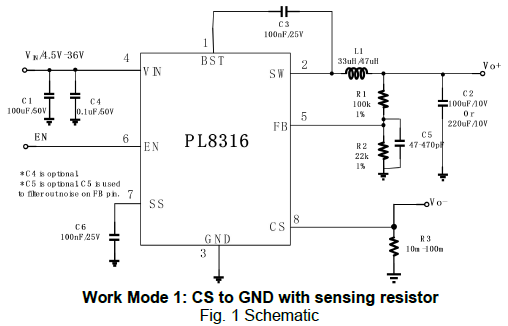

| 4 Typical Application Schematic | 5 Pin Configuration and Functions |
 |  |
